AD22-22DS Green 110V
Original price was: $17.90.$12.50Current price is: $12.50.Box
AD22-22DS Green 36V
Original price was: $17.90.$12.50Current price is: $12.50.Box

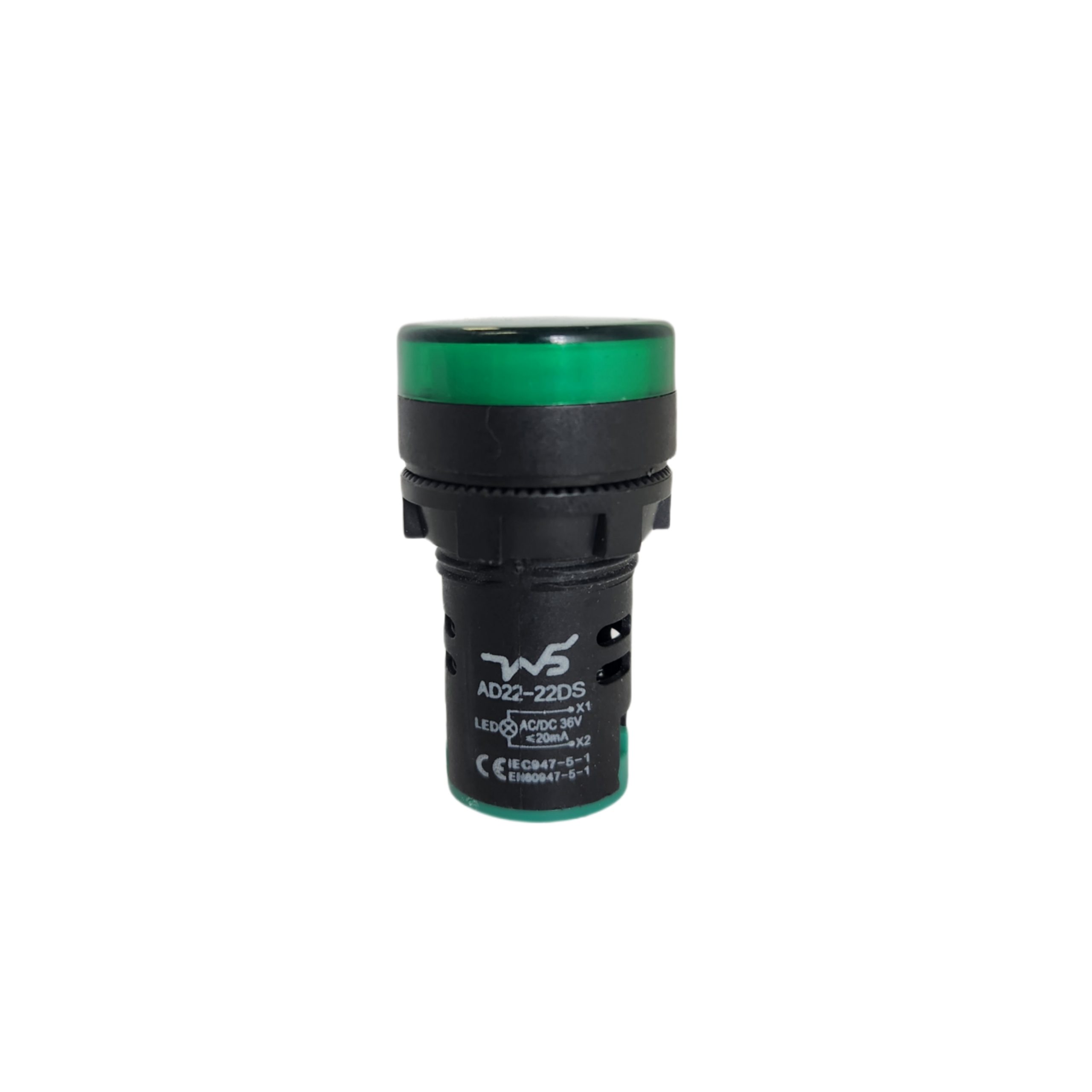

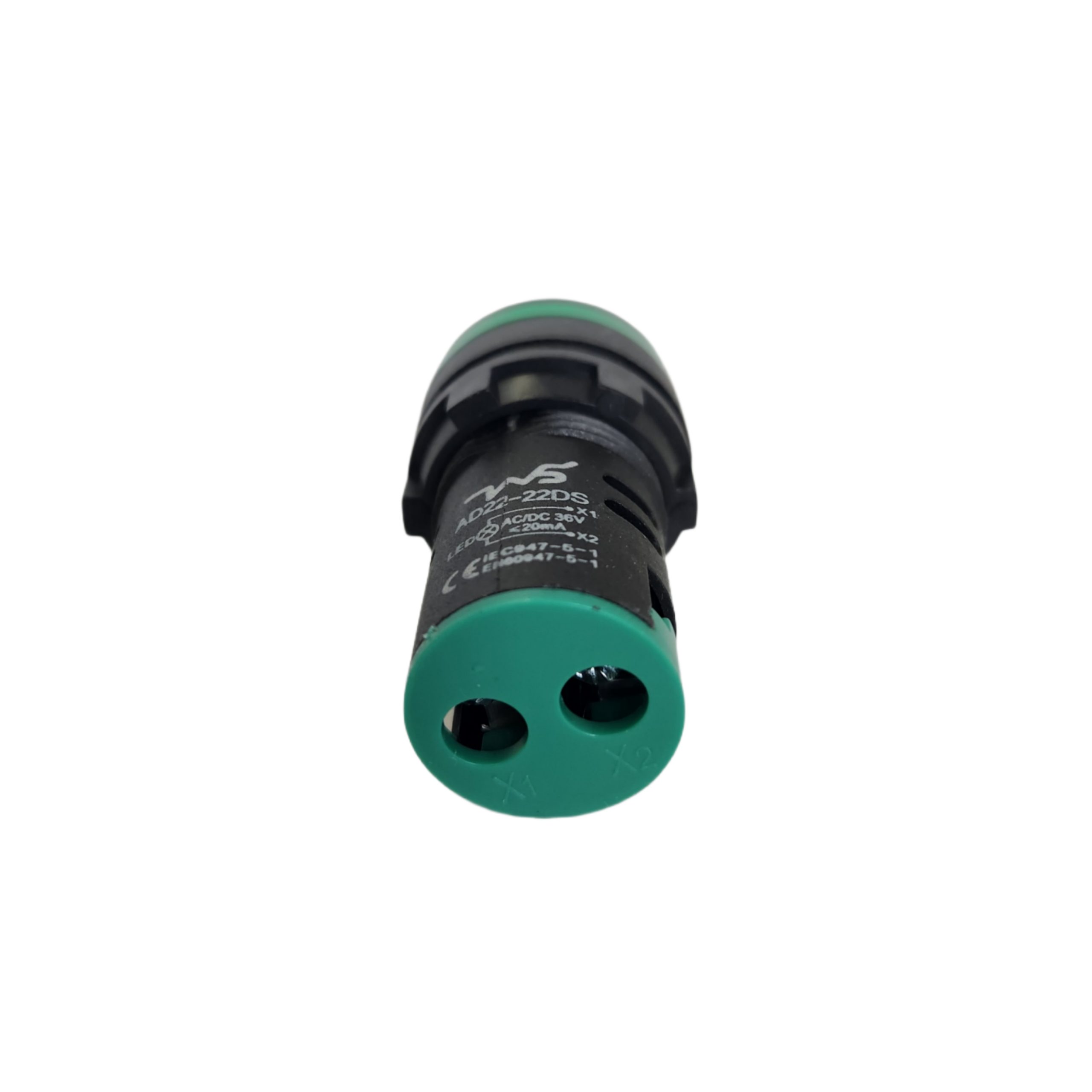

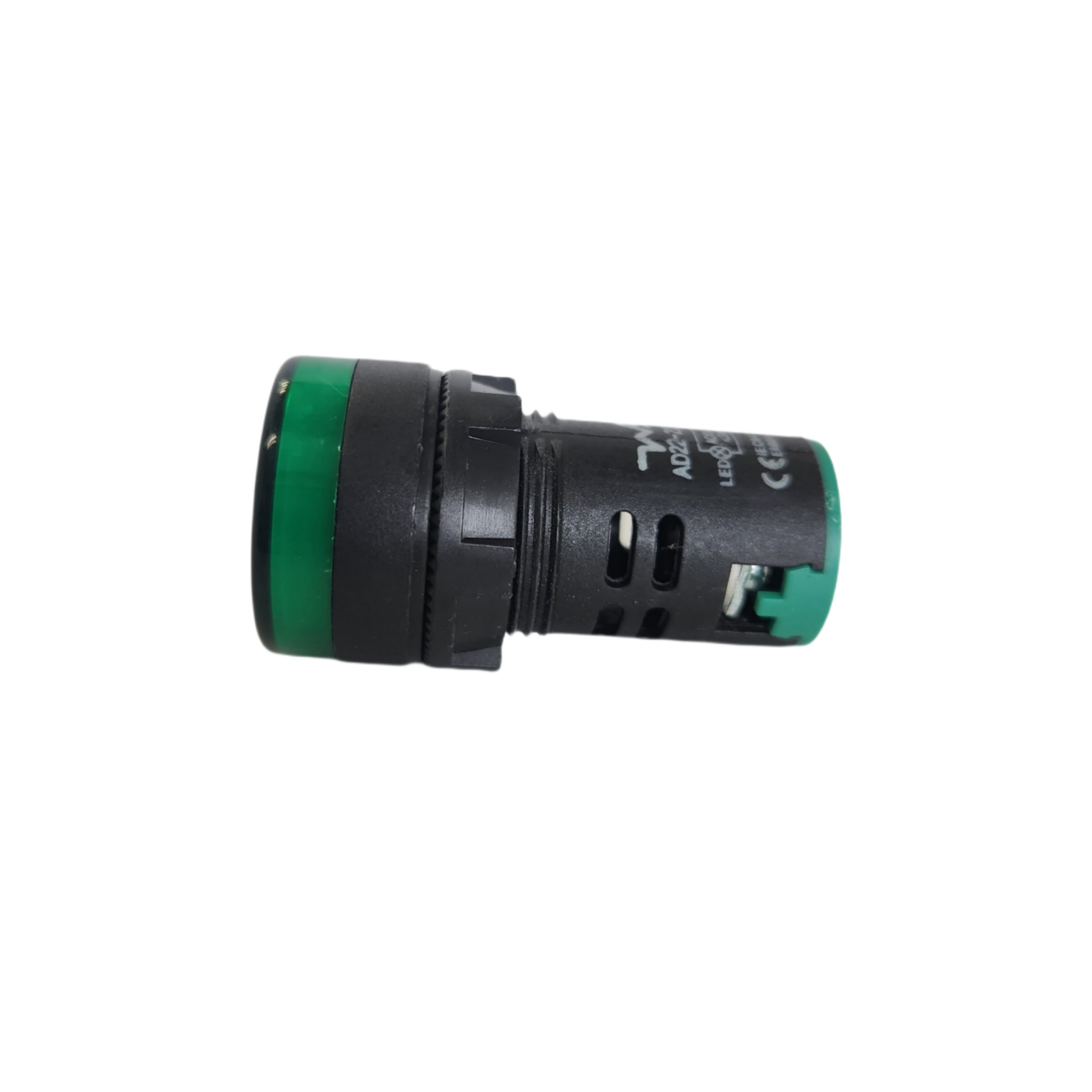

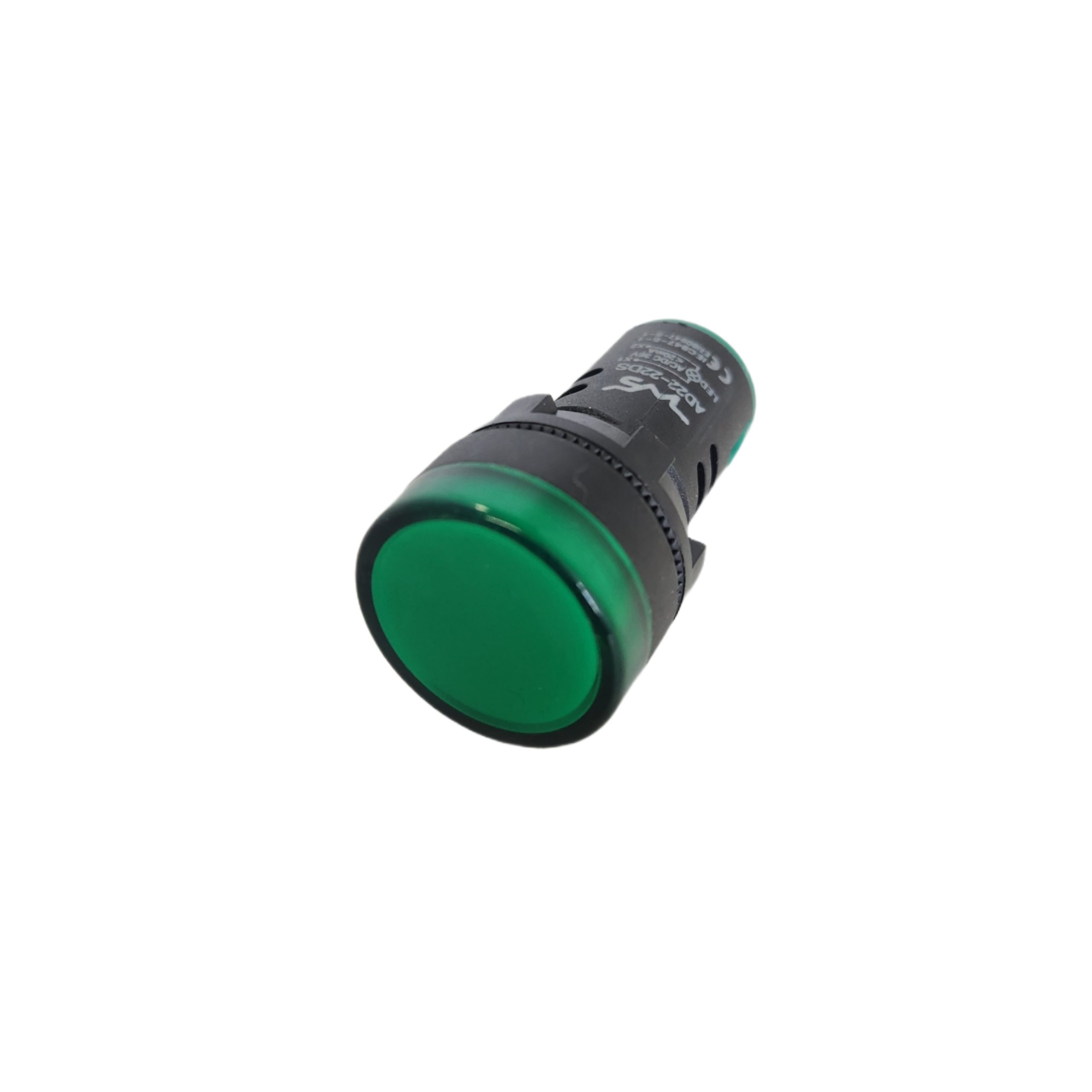

LED Pilot Light, Ø22mm Cut Out, Green, 36V AC/DC.
SPQ: 10pcs/Box
34 in stock
Description
Product Description
AD22 series of Pilot Light is a new type of product replacing the incandescent and neon indicator light. The lamp shade is made of durable polycarbonate. It comes with various colour, size and voltage which make it suitable for many indoor usage.
Specifications
- Model: AD22-22
- Panel cutout diameter: 22mm, others on request
- Light source: Integral LED
- Rated voltage: 36V, DC/AC 50-60Hz
- Withstand voltage: 5kV – 1 minute
- Impulse voltage: 6kVp
- Voltage tolerance: ±20%
- Power consumption: ≤20mA
- Continuous working life: 30000 hours
- Index protection: IP40 (front face), IP20 (body)
- Terminal assignment: X1 – X2
- Panel thickness supported: 1 – 6mm
- Standard compliance: IEC/EN 60947-5-1
