Name: Fire Suppression Tube 2.5m
SKU: WS015 0001
Availability: InStock

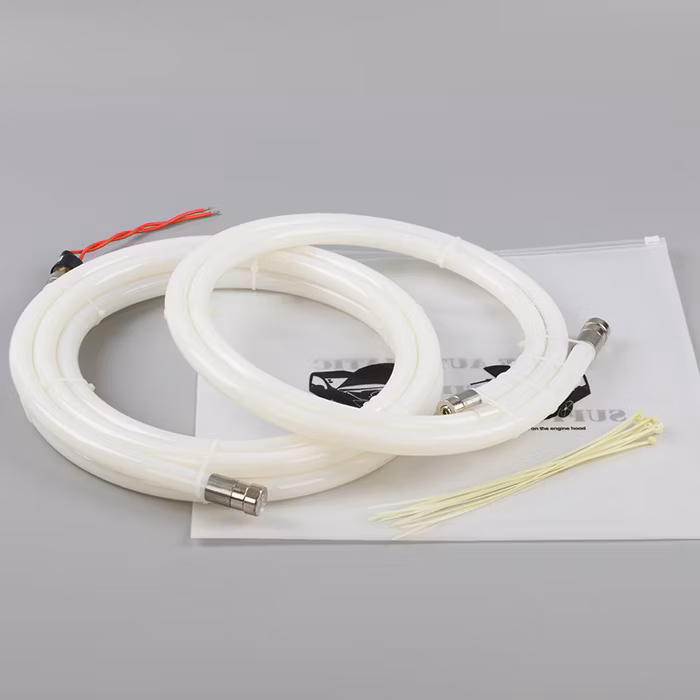

Fire Suppression Tube 2.5m

unit

Protection from fires before they spread
Protect electrical spaces preventing severe damage and losses
Protect vehicle engine space preventing severe damage
Enclosed area fire protection

6 in stock

SKU: WS015 0001 Category: Fire Safety

Product Description

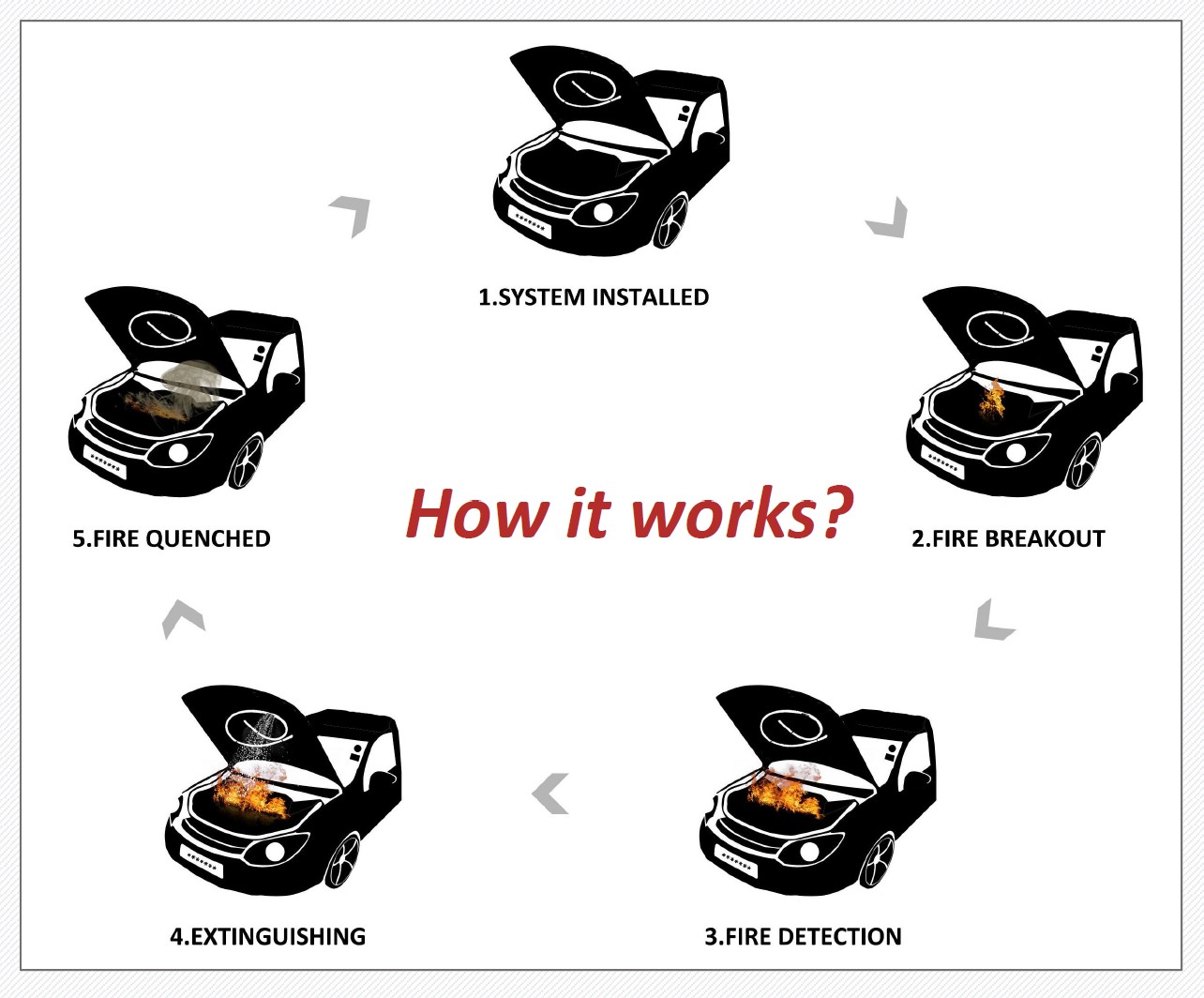

The automatic tube fire suppression system is a compact and reliable fire protection solution designed to detect and extinguish fires at the source. Using a heat-sensitive polymer tube that bursts when exposed to high temperatures, it automatically releases a clean extinguishing agent directly onto the fire. Ideal for enclosed or high-risk areas such as electrical panels, server cabinets, vehicles, and machinery, this system operates without electricity, requires minimal maintenance, and provides fast, effective, and automatic fire suppression to prevent damage and downtime.

Specifications

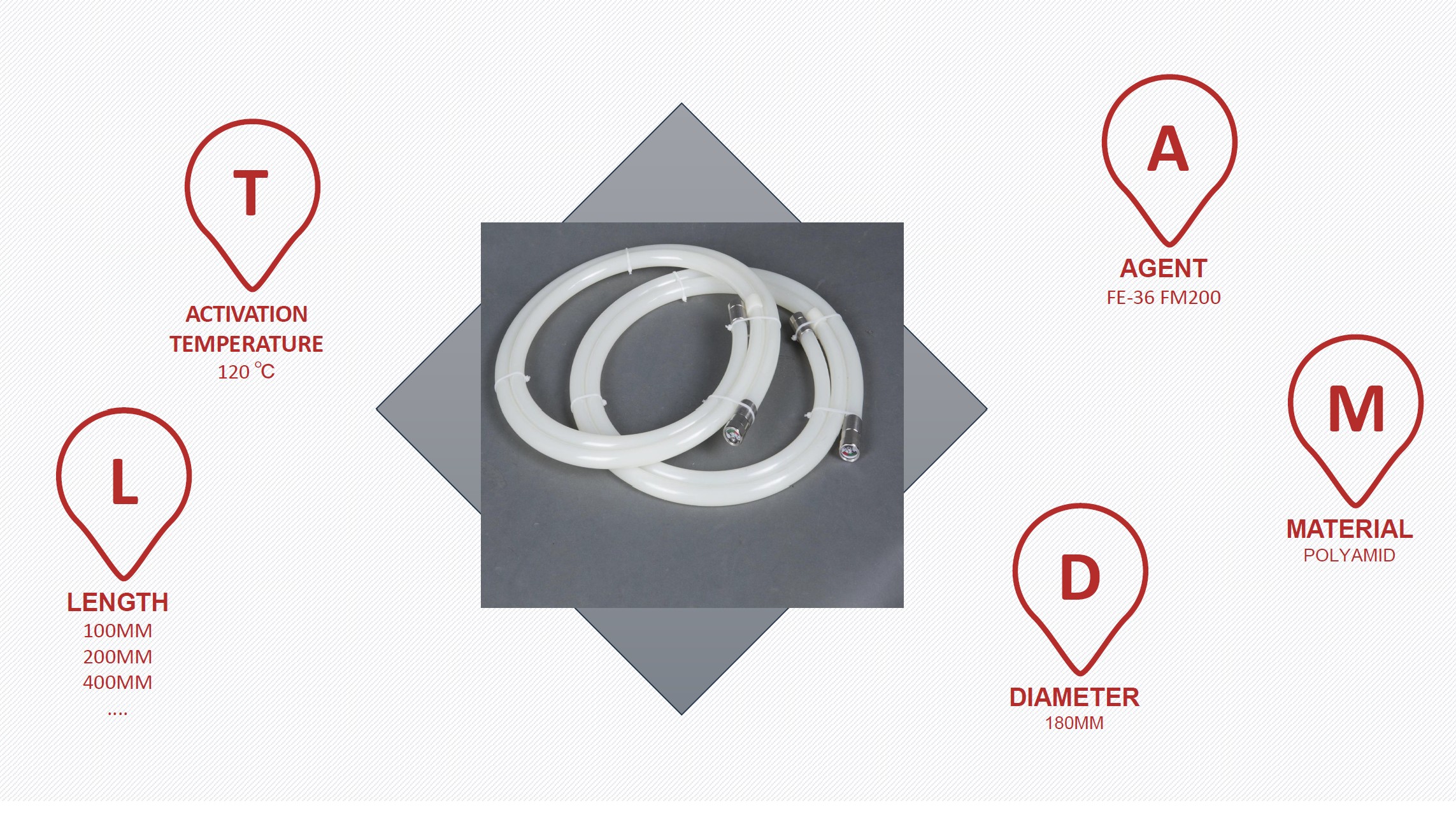

Detection Method: Heat-sensitive polymer detection tube (bursts at preset temperature)
Activation Temperature: Typically between 120°C and above
Extinguishing Agent Options: Novec1230(FK 5-1-12) / FM200 (HFC-227ea) / FE-36(HFC-236fa)
System Type: Direct (discharge through burst point) or Indirect (within calculated space refer to datasheet)
Operating Pressure: 10–18 bar (depending on agent type)
Power Requirement: None (fully mechanical and self-activated)
Response Time: Immediate upon heat detection and tube rupture

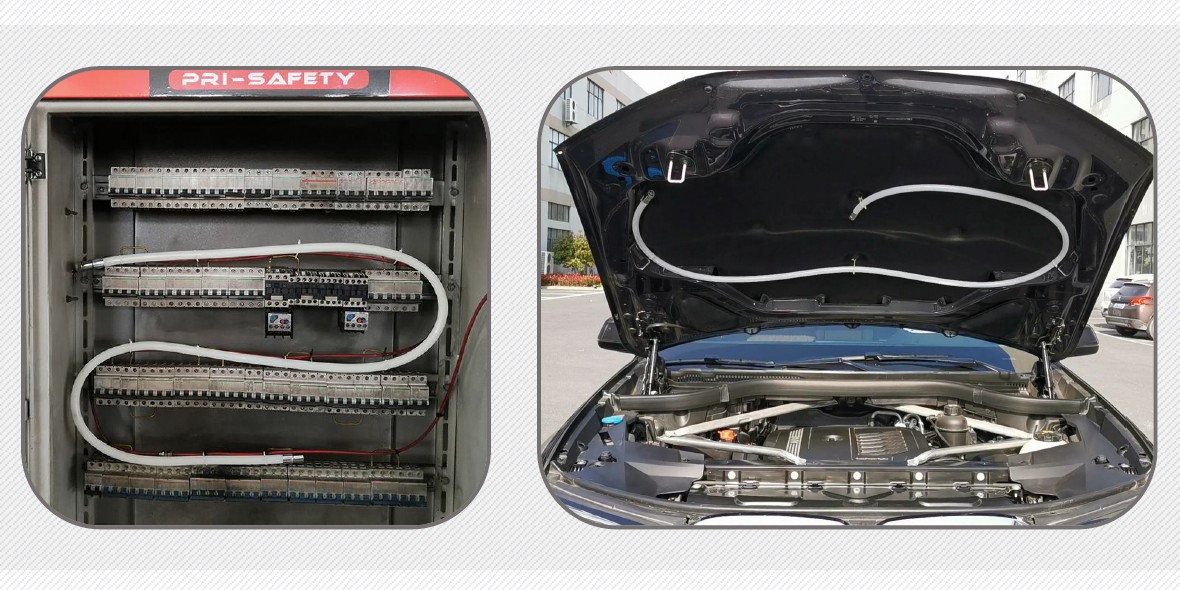

Suitable Applications: Electrical panels, CNC machines, server racks, vehicle engine bays, and switchboards
Certification: Compliant with UL, CE, or equivalent fire safety standards
5 years shelf life
