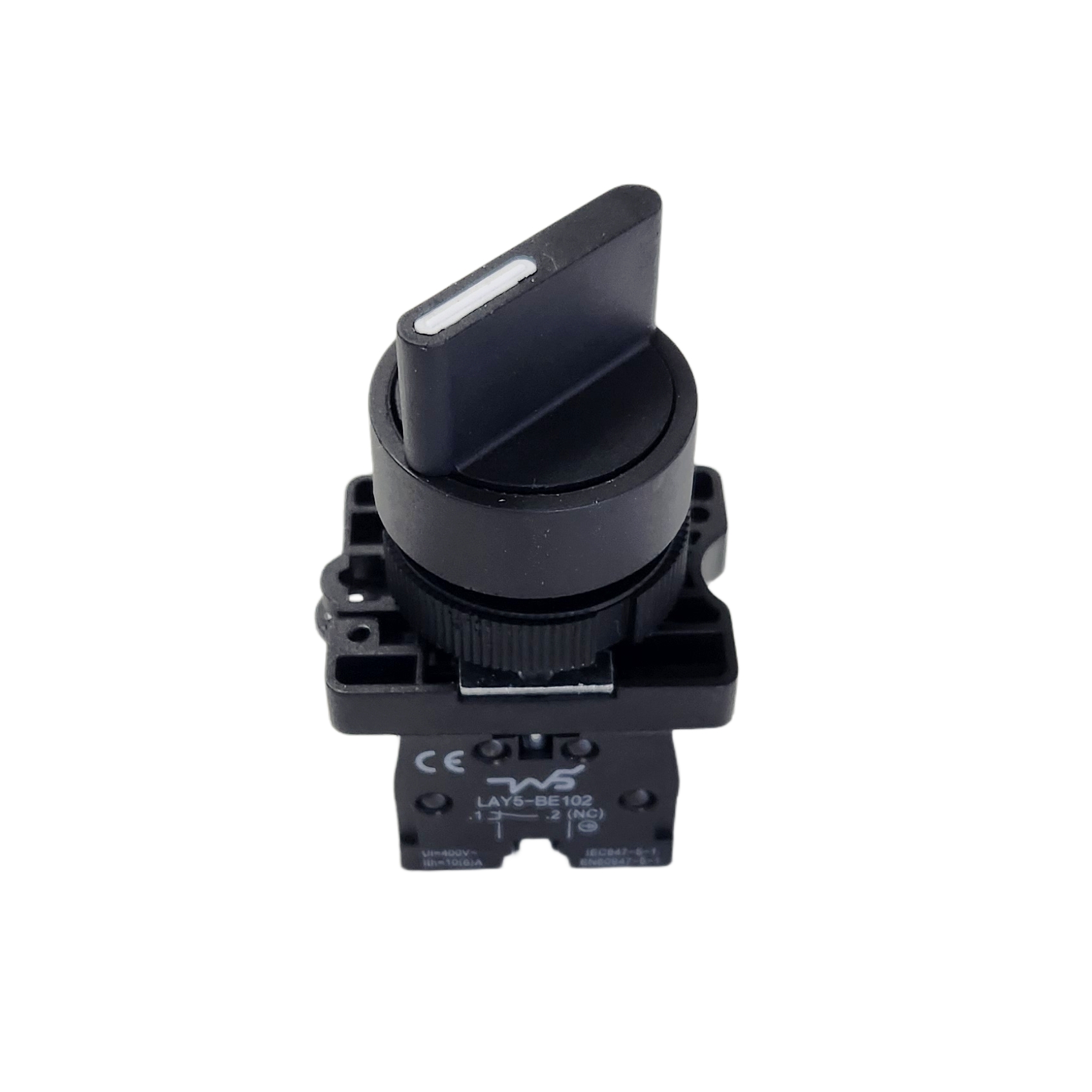

LAY5 Series Selector Switch
Standard Handle, 2 Position Stay put, NO+NC
50 in stock
Description
Product Description
LAY5-ED series selector switch is designed for voltage up to 600V 50/60Hz and up to 400V DC. It is suitable to be mounted on panel cutout of 22mm diameter. It is complying to IEC 60947-5. The contacts are normally open, and/or normally closed. It comes in 2 or 3 position, stay put type. It also come in spring return to centre type. It comes in black colour. But in case of need, they also come in different colour.
Specifications
- Model: LAY5-ED25-SH2PSP

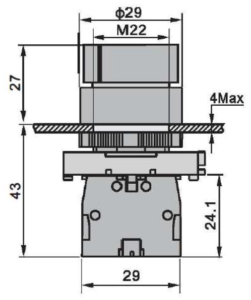

- Panel cutout diameter: 22mm, others on request
- Operation mode: 2 Position
- Type: Stay put
- Contacts: See Part SKU for options
- Rated voltage: Up to 600V (50-60Hz)
- Withstand voltage: 5kV – 1 minute
- Impulse voltage: 6kVp
- Continuous working life (Mechanical): 100 x 10000
- Index protection: IP40 (front face), IP20 (body)
- Terminal assignment: 1 – 2 NC, 3 – 4 NO
- Panel thickness supported: 1 – 6mm
- Standard compliance: IEC/EN 60947-5-1
